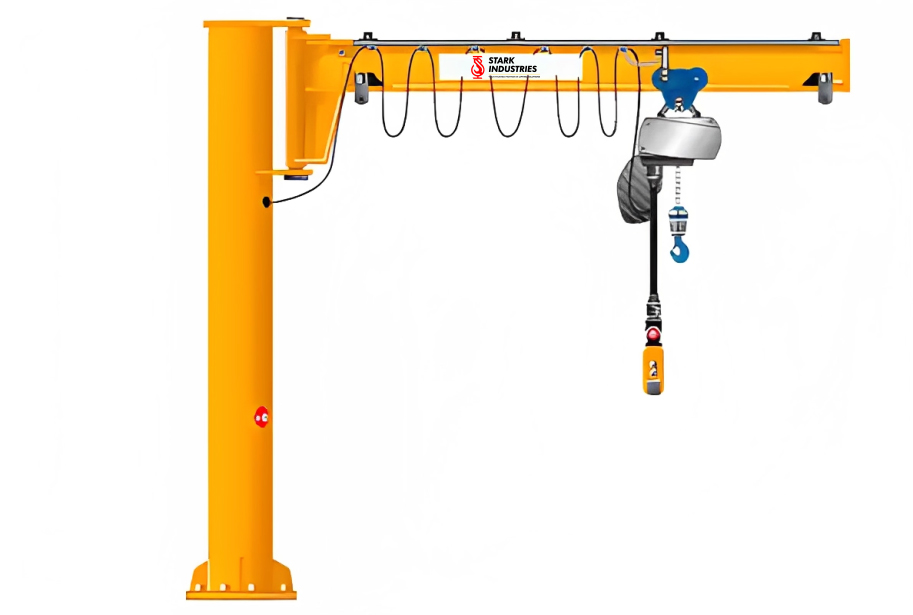

Elevate your material handling operations with our top-of-the-line Jib Cranes from Stark Industries. Our cranes are crafted to exacting standards and conform to IS-807 and IS-3177, ensuring reliable and consistent performance. Designed to support overhead cranes on production lines, our Jib Cranes keep workstations, machining cells, and warehouses in uninterrupted operation.
Product Features & Specifications
This Jib Crane handles 1 to 10 ton capacities with customizable spans and lift heights, designed for reliable performance in production lines, workshops, and warehouses. It meets IS-3177 standards with M3 to M8 duty class, featuring base gusset plate for rigidity to column and mast fabricated from pipe or rolled steel sections.
The jib arm uses fabricated I-beam/heavy plate construction with double roller self-aligned bearings for horizontal loading and well as radial thrust. Power supply includes C-rail festoon/drag chain for cross travel, long cable duct from panel to motors; squirrel cage motors have built-in fail-safe brakes (B/F insulation class). Swivelling boom available at 90°, 180°, 360° with hoist speed as per customer requirement.
Capacity Range
1 Ton To 15 Ton
Height of Lift
As per Requirement
Plate
M.S gusset plate/thick base plate give added rigidity to column
Span
As per Requirement
Duty Class
Equivalent to m3 to m8 as per IS - 3177
Mast
Fabricated from pipe/rolled steel section
Jib Arm
Fabricated from heavy section i-Beam and triangular truss construction / plate fabrication
Bearing
Double roller self aligned thrust rooler bearing to take care of horizontal and vertical loading as well as radial thrust
Swiveling
Through chain at end of JIB arm or electric
Power Supply
We are providing C rail festoon system / Drag chain for cross travel supply, Also using DSL System for Long Travel power supply. We are providing cable duct for Connections from panel to motors.
Motor
Squirrel cage induction hoisting motors with built-in fail safe brakes for hoisting, cross travel as well as long travel. insulation class for all motors B/F
Swiveling Boom
Available with 90, 180, 360
Hoist Speed
As per Customer Requirement
